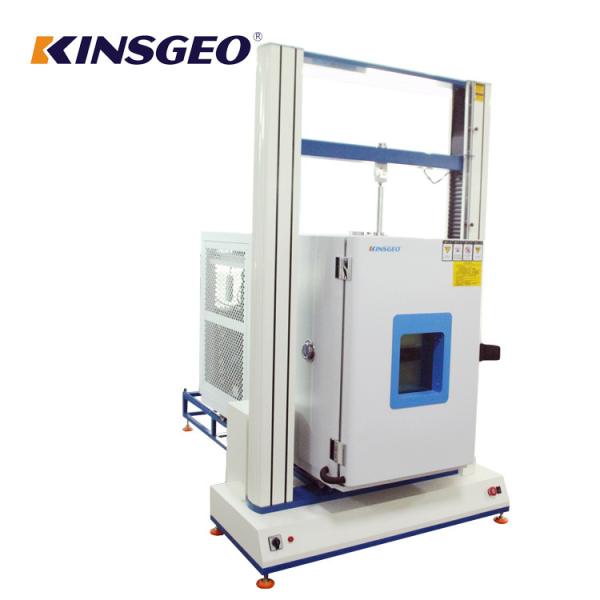

KINSGEO Rubber Tensile Testing Machine Constant Temp Humidity

Name: KINSGEO Rubber Tensile Testing Machine Constant Temp Humidity
Brand: KINSGEO
Price: 1 USD

Wholesale KINSGEO Rubber Tensile Testing Machine Constant Temp Humidity from china suppliers

Brand Name : KINSGEO

Model Number : KJ-1067

Certification : ISO,CE and etc,

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Sets Per Months

Delivery Time : 5 Working days

Packaging Details : Export wooden case

Product Name : Constant Temp.&Humidity Peel Strength Tester

Load accuracy : 0.5%

Testing speed : 0.5～500mm/min

Power system : Panasonic AC servo motor

Range of humidity : 20%RH～98%RH

Range of Temperature : -40 Degree~150 Degree

Capacity : 5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg

Warranty : 12 Months

Contact Now

KINSGEO Rubber Tensile Testing Machine Constant Temp Humidity

Feature

1. The machine structure adopts advanced baking paint treatment and is equipped with high precision, low resistance, no clearance double ball screw and guide column, so that the loading efficiency and structural hardness are increased.

2. The control system adopts Panasonic AC servo motor, which ensures the rotational system has characteristics of high efficiency, stable transmission, low noise and precise speed control.

3. The microcomputer system uses the commercial computer as the main control machine. It can complete all the test parameters setting, working state control, data acquisition, processing analysis, result display and print output with our specialized test software.

4. The high-low temperature test chamber adopts bistratal adiabatic glass door for the convenience of observe testing condition. It adopts whole stainless steel frame and liner. It is not only beautiful, but also has strong resistance to corrosion.

5. The structure of instrument is reasonable. It can be used to test separately or combinedly. It can be separated into Constant Humidity&Temp. Tester and Peel Strength Tester.

Technical Parameter

Technical parameter for Tensile Testing Machine
Capacity	5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg
Degree of load decomposition	1/25,000
Load accuracy	0.5%
Testing speed	0.5～500mm/min
Power system	Panasonic AC servo motor and driver
Software feature	Unit selection: g, kg, N, KN, LB
Technical parameter for High-low Temperature Control System
Model	High-low temperature type
Range of temperature control	-40°C～150°C
Range of humidity	20%RH～98%RH
Control stability	±2.5%RH, 1℃
Distribution uniformity	±3%RH, ±1℃
Control of temperature and humidity	Korean TIMI880 programmable touch screen controller
Size of inner box	40×40×70cm(customized)
Power	1φ, AC220V/50Hz

KEJIAN Instrument Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.

Onsite Service:
1. Device installation

2. Equipment Operation Test Technology training

3. Equipment Calibration

4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1. Product Instruction;

2. Product operation instruction/video;

3. Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;

2. Mail Seamless Docking;

3. Video Conferencing;

4. Artificial free door-to-door service.

KINSGEO Rubber Tensile Testing Machine Constant Temp Humidity

FAQ:

1. Why Choose Us?

(1)Focusing on this testing field for over 15 years makes us professional.

(2)Located in Dongguan city--the world class manufacturing city.

(3)After-sales service for 12 months, promptly deal with all the problems.

2. Are you a factory?

Yes, we are.

3. What's the product delivery time?

Within 10 work days after deposit received.

If we have stock, the delivery time will be greatly shortened.

4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
